Specifications

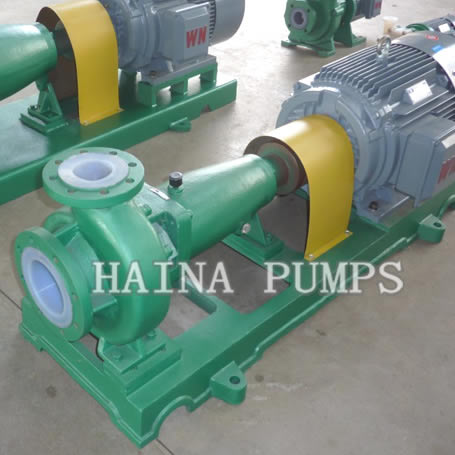

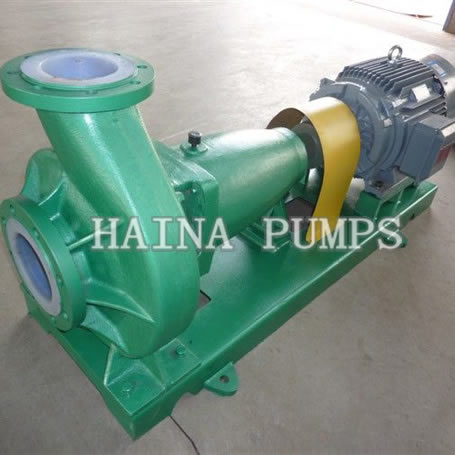

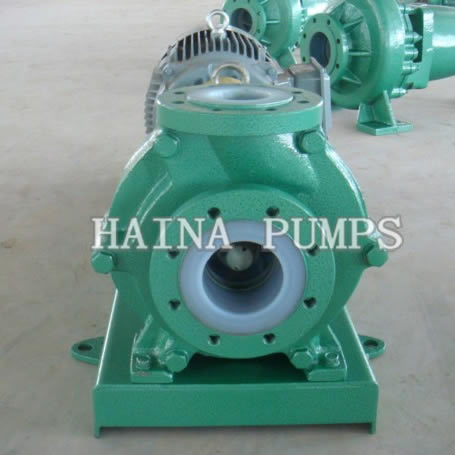

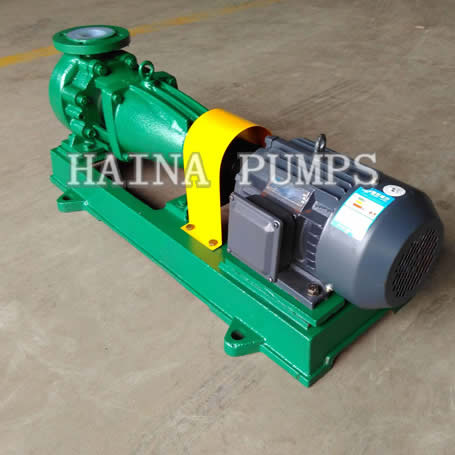

1.China Haina IHF PTFE TEFLON lined pump to handle various acid,alkali ,oil.
The Series IHF are newly designed single-stage, single suction centrifugal pumps.
IHF pump is designed as per the international standard.
Widely applicable for petrochemical,metallurgy,synthetic fibre,pharmacy ,foodstuff,brewage and ect.
to handle various acid,alkali,hydrochloric,oil,drink and organic solvent
2.Usage

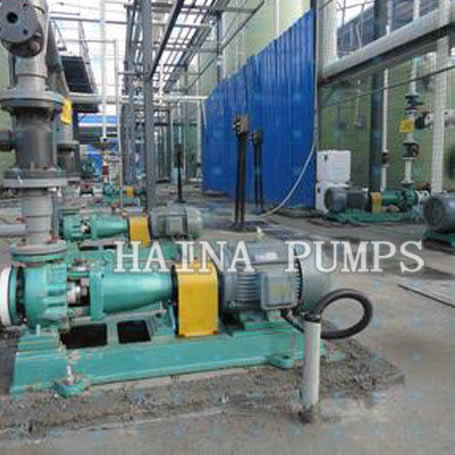

The TEFLON lined pump is widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids, etc. process.
This PTFE lined pump can be used in transporting harsh and strong erosive medium of any density such as vitriol, hydrochloric, organic dissolvent, corrosion medium and reducing agent etc. It is one of the latest erosion proof equipments in the world.
TEFLON lined pump data：
Flow Rate:6.3-400m3/h
Rotary speed:2900 or 1450r/m
Total Lift Head:5-125m
Max.Working Pressure:1.6MPa
Inlet Diameter:50-200mm
Outlet Diameter:32-150mm
Power:0.55-110kw
| IHF pump Type | Speed=2900r/min
Medium Density=1000kg/m3 |
Speed=1450r/min
Medium Density=1000kg/m3 |
|||||||||
| Flow
(m3/h) |
Head
（m） |
Motor（kw） | NPSH （m） | efficiency（%） | Flow
(m3/h) |
Head
（m） |
Motor
（kw） |
NPSH
（m） |
efficiency（%） | ||
| IHF40-25-125 | 4
6 8 |
23
20 18.5 |
1.5 | 2.0 | 40 | 2
3 4 |
5.5
5 4.5 |
0.55 | 2.0 | 34 | |
| IHF40-25-160 | 4
6 8 |
34
32 28 |
2.2 | 2.0 | 33 | 2
3 4 |
9
8 7 |
0.55 | 2.0 | 27 | |
| IHF40-25-200 | 4
6 8 |
52
50 48 |
4 | 2.0 | 26 | 2
3 4 |
13.5
12.5 12 |
0.75 | 2.0 | 20 | |
| IHF40-25-250 | 4
6 8 |
82
80 78 |
7.5 | 2.0 | 25 | 2
3 4 |
20.5
20 19.5 |
1.5 | 2.0 | 19 | |
| IHF50-32-125 | 10
12.5 15 |
23
20 18.5 |
2.2 | 3.0 | 51 | 5
6.3 8 |
5.5
5 4.5 |
0.55 | 3.0 | 45 | |
| IHF50-32-160 | 10
12.5 15 |
34
32 28 |
4 | 3.0 | 46 | 5
6.3 8 |
9
8 7 |
0.55 | 3.0 | 40 | |
| IHF50-32-200 | 10
12.5 15 |
52
50 48 |
7.5 | 3.0 | 39 | 5
6.3 8 |
13.5
12.5 12 |
1.1 | 3.0 | 33 | |
| IHF50-32-250 | 10
12.5 15 |
82
80 78 |
11 | 3.5 | 38 | 5
6.3 8 |
20.5
20 19.5 |
1.5 | 3.5 | 32 | |
| IHF65-50-125 | 15
25 30 |
23
20 18.5 |
3 | 3.5 | 62 | 7.5
12.5 15 |
5.5
5 4.5 |
0.55 | 3.5 | 55 | |
| IHF65-50-160 | 15
25 30 |
34
32 28 |
5.5 | 3.5 | 57 | 7.5
12.5 15 |
9
8 7 |
1.1 | 3.5 | 51 | |
| IHF65-40-200 | 15
25 30 |
52
50 48 |
11 | 3.5 | 52 | 7.5
12.5 15 |
13.5
12.5 12 |
1.5 | 3.5 | 46 | |
| IHF65-40-250 | 15
25 30 |
82
80 78 |
18.5 | 3.5 | 50 | 7.5
12.5 15 |
20.5
20 19.5 |
3 | 3.5 | 43 | |
| IHF80-65-125 | 40
50 60 |
23
20 18.5 |
5.5 | 4.0 | 69 | 15
25 30 |
5.5
5 4.5 |
1.1 | 4.0 | 64 | |
| IHF80-65-160 | 40
50 60 |
34
32 28 |
11 | 4.0 | 67 | 15
25 30 |
9
8 7 |
1.5 | 4.0 | 62 | |
| IHF80-50-200 | 40
50 60 |
52
50 48 |
15 | 4.0 | 63 | 15
25 30 |
13.5
12.5 12 |
2.2 | 4.0 | 57 | |
| IHF80-50-250 | 40
50 60 |
82
80 78 |
30 | 4.0 | 56 | 15
25 30 |
20.5
20 19.5 |
5.5 | 4.0 | 51 | |
| IHF80-50-315 | 40
50 60 |
127
125 123 |
37 | 4.0 | 56 | 15
25 30 |
34
32 30 |
7.5 | 4.0 | 51 | |
| IHF100-80-125 | 80
100 120 |
22
20 18.5 |
11 | 4.5 | 77 | 40
50 60 |
5.5
5 4.5 |
1.5 | 4.5 | 74 | |
| IHF100-80-160 | 80
100 120 |
34
32 28 |
15 | 4.5 | 73 | 40
50 60 |
9
8 7 |
2.2 | 4.5 | 69 | |
| IHF100-65-200 | 80
100 120 |
52
50 48 |
30 | 4.5 | 73 | 40
50 60 |
13.5
12.5 12 |
5.5 | 4.5 | 68 | |
| IHF100-65-250 | 80
100 120 |
82
80 78 |
45 | 4.5 | 71 | 40
50 60 |
20.5
20 19.5 |
7.5 | 4.5 | 64 | |
| IHF100-65-315 | 80
100 120 |
127
125 123 |
55 | 4.5 | 68 | 40
50 60 |
34
32 30 |
11 | 4.5 | 62 | |
| IHF125-100-160 | 150
200 240 |
34
32 28 |
30 | 5.0 | 70 | 80
100 120 |
9
8 7 |
5.5 | 5.0 | 70 | |
| IHF125-100-200 | 150
200 240 |
52
50 48 |
55 | 5.0 | 65 | 80
100 120 |
13.5
12.5 12 |
11 | 5.0 | 71 | |
| IHF125-100-250 | 150
200 240 |
82
80 78 |
75 | 5.0 | 68 | 80
100 120 |
20.5
20 19.5 |
15 | 5.0 | 72 | |
| IHF125-100-280 | 150
200 240 |
102
100 96 |
90 | 5.0 | 73 | 80
100 120 |
27
25 23 |
15 | 5.0 | 72 | |
| IHF125-100-315 | 80
100 120 |
34
32 30 |
18.5 | 5.0 | 69 | ||||||
| IHF125-100-400 | 80
100 120 |
53
50 48 |
30 | 5.0 | 65 | ||||||
| IHF150-125-250 | 240
200 150 |
20.5
20 19.5 |
22 | 6.0 | 77 | ||||||
| IHF150-125-315 | 240
200 150 |
34
32 30 |
30 | 6.0 | 75 | ||||||
| IHF150-125-400 | 240
200 150 |
52
50 48 |
45 | 7.0 | 65 | ||||||
| IHF200-150-250 | 250
400 480 |
20.5
20 19.5 |
45 | 7.0 | 74 | ||||||
| IHF200-150-315 | 250
400 480 |
34
32 30 |
55 | 7.0 | 79 | ||||||
| IHF200-150-400 | 250
400 480 |
52
50 48 |
90 | 7.0 | 78 | ||||||
| IHF250-200-315 | 400
600 700 |
32.3
32 30.7 |
75 | 7.5 | 75 | ||||||
| IHF300-250-315 | 600
800 900 |
32.3
32 30.7 |
90 | 8.0 | 70 | ||||||
| IHF300-250-400 | 600
800 900 |
53
50 47 |
160 | 7.5 | 70 | ||||||
| IHF400-350-315 | 1000 | 15 | 75 | 6.0 | 80 | ||||||
