Stainless Steel Magnetic Drive Pump

Type:centrifugal pump
Product name: stainless steel magnetic pump, stainless steel magnetic drive centrifugal pump
Material: stainless steel 304 316 316L
Flow:1.2-60 m3/h
Head:5-50M
The motor power:0.18-15KW

Categories: .

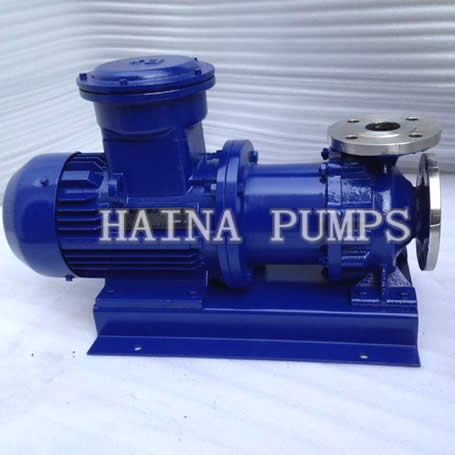

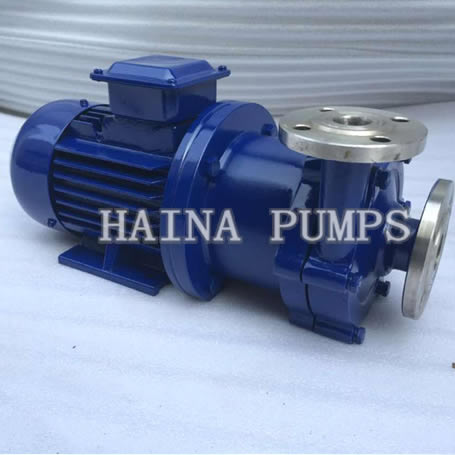

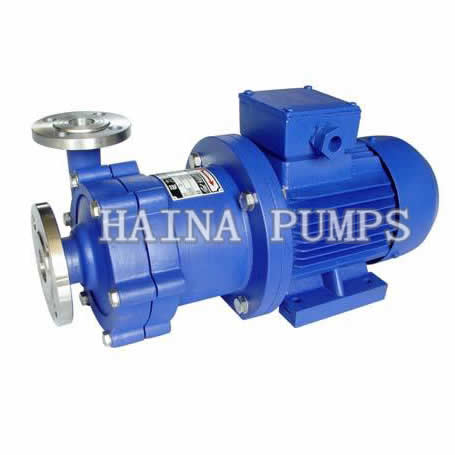

CQ stainless steel magnetic drive pump

1:Feature
CQB-CQ-stainless-steel-magnetic-drive-centrifugal-pumpCQ magnetic coupling stainless steel centrifugal pump stainless steel magnetic pump (CQ) is applied as the main working principle of magnetic couplings in centrifugal pump of new type pump products, pump body and flow components adopts 304 stainless steel material, design is very reasonable, the craft is advanced, has the full seal, no leakage, corrosion resistance and other major features, CQ stainless steel magnetic pump performance has reached advanced level of similar foreign pump products.CQ magnetic stainless steel pump compact structure, beautiful appearance, small size, low noise, stable running, convenient use and maintenance. CQ magnetic stainless steel pump can be widely used in chemical, pharmaceutical, oil, electroplating, food, develop film photography, scientific research institutions, defense industry pumping units such as acid, alkali, oil, rare precious liquid, plating solution, volatile liquid, and form a complete set of equipment of circulating water.Especially for inflammable, explosive, corrosive, volatile liquid pumping, CQ stainless steel magnetic pump is more safe and ideal.
2:main performance parameters
Flow:1.2-60 m3/h
Head:5-50M
The motor power:0.18-15KW
Temperature: 80℃ or less (according to user requirements can be customized to 200℃ or less)
Material:SS304 316 316L

Model caliber Flow (m3/h) Head (m) Motor (kW)
Inlet

(mm)

Outlet

(mm)

14CQ-5 14 10 1.2 5 0.12
16CQ-8 16 12 1.8 8 0.18
20CQ-12 20 12 3 12 0.37
25CQ-15 25 20 5.4 15 1.1
32CQ-15 32 25 6.5 15 1.1
32CQ-25 32 25 4.8 25 1.1
40CQ-20 40 32 10 20 2.2
40CQ-32 40 32 11.5 32 4
50CQ-25 50 40 14.4 25 4
50CQ-32 50 40 13.2 32 4
50CQ-50 50 32 7.8 50 5.5
65CQ-25 65 50 16.8 25 5.5
65CQ-32 65 50 25 32 7.5
80CQ-32 80 65 50 32 11
50CQ-50 80 65 50 50 15
100CQ-32 100 80 60 32 15
100CQ-50 100 80 60 50 18.5

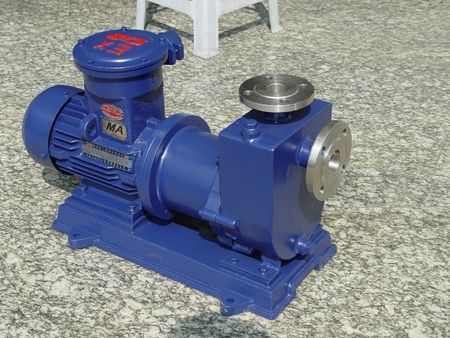

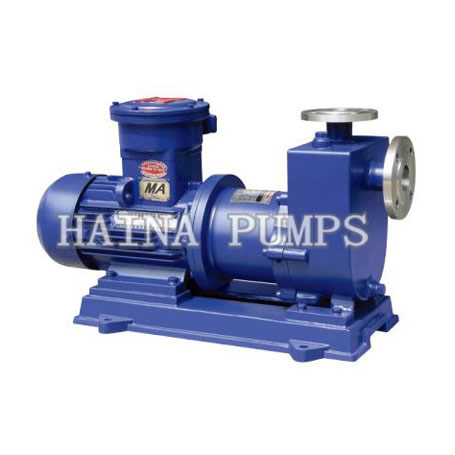

ZCQ Self-priming stainless steel magnetic drive pump

ZCQ-Self-priming-stainless-steel-magnetic-drive-pump-CHINAZCQ self priming ss magnetic pump Performance parameter:
Flow:3-50m3/h
Head:12-50M
The motor power:0.37-15KW
Temperature: 80℃ or less (according to user requirements can be customized to 200℃ or less)
Material:SS304 316 316L

Model caliber(mm) Flow (m3/h) Head

(m)

Motor (kW)
Inlet Outlet
ZCQ20-12-100 20 12 3 12 0.37
ZCQ25-20-115 25 20 6.6 15 1.1
ZCQ32-25-115 32 25 6.6 15 1.1
ZCQ32-25-145 32 25 6.6 25 1.1
ZCQ40-32-132 40 32 10.8 20 2.2
ZCQ40-32-160 40 32 12 32 4
ZCQ50-40-145 50 40 14.4 25 4
ZCQ50-40-160 50 40 13.2 32 4
ZCQ50-40-200 50 40 7.8 50 5.5
ZCQ65-50-145 65 50 16.8 25 5.5
ZCQ65-50-160 65 50 27 32 7.5
ZCQ80-65-125 80 65 50 20 7.5
ZCQ80-65-160 80 65 50 32 15
ZCQ80-65-200 80 65 50 50 18.5
