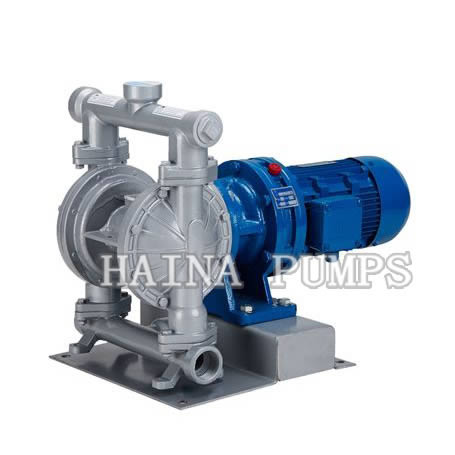

Electric Diaphragm Pump Model Parameters
| Type | Model | Max.Flow (L/min) |
Max.Head (m) |
Max.Suction (m) |
Outlet Pressure (kg) |
Fluid Medium Dia (mm) |
Rotate Power |
| Low Pressure |
EDD-10 | 12.8 | 40 | 3 | 4 | 0.5 | 0.55KW |
| EDD-15 | 12.8 | 40 | 3 | 4 | 0.5 | 0.55KW | |
| EDD-20 | 48 | 40 | 4 | 4 | 4 | 0.55KW | |
| EDD-25 | 48 | 40 | 4 | 4 | 4 | 0.55KW | |
| EDD-25A | 48 | 40 | 4 | 4 | 4 | 1.5KW | |
| EDD-32 | 48 | 40 | 4 | 4 | 4 | 1.5KW | |
| EDD-40 | 48 | 40 | 4 | 4 | 4 | 1.5KW | |
| EDD-50 | 162 | 40 | 5 | 4 | 5 | 2.2KW | |
| EDD-65 | 162 | 40 | 5 | 4 | 5 | 2.2KW | |
| EDD-80 | 245 | 40 | 5 | 4 | 6 | 2.2KW | |
| EDD-100 | 245 | 40 | 5 | 4 | 6 | 3KW | |
| EDD-125 | 480 | 40 | 6 | 4 | 9 | 4KW | |
| High Pressure |
EDDS-10 | 12.8 | 70 | 3 | 7 | 0.5 | 0.75KW |
| EDDS-15 | 12.8 | 70 | 3 | 7 | 0.5 | 0.75KW | |
| EDDS-20 | 48 | 70 | 4 | 7 | 4 | 0.75KW | |
| EDDS-25 | 48 | 70 | 4 | 7 | 4 | 0.75KW | |
| EDDS-25A | 48 | 70 | 4 | 7 | 4 | 2.2KW | |
| EDDS-32 | 48 | 70 | 4 | 7 | 4 | 2.2KW | |
| EDDS-40 | 48 | 70 | 4 | 7 | 4 | 2.2KW | |
| EDDS-50 | 162 | 70 | 5 | 7 | 5 | 3KW | |
| EDDS-65 | 162 | 70 | 5 | 7 | 5 | 3KW | |
| EDDS-80 | 245 | 70 | 5 | 7 | 6 | 4KW | |
| EDDS-100 | 245 | 70 | 5 | 7 | 6 | 4KW | |
| EDDS-125 | 480 | 70 | 6 | 7 | 9 | 5.5KW | |
Electric Diaphragm Pump Designation
Fluid Contact parts
| Cast steel |
Aluminium alloy |
Engineering plastics |
Stainless steel 304 |
Stainless steel 316 |
Stainless steel 316L |
Fluoroplastics | PTFE |
| G | L | S | P | P316 | P316L | F | T |
Diaphragm Materials
| Gather rubber diaphragm |
NBR diaphragm |
Chloroprene rubber |
EPDM | Teflon | Fluororubber | Polyether diaphragm |
| J | D | L | S | T | V | M |
| PTFE | NBR PTFE | NBR Teflon | Polyether PTFE |
Polyether Teflon |
Polyester diaphragm |
|
| F | B | C | K | X | Z | |
Valve Ball
| NBR | Chloroprene | PTFE | Steel | Stainless 304 |
Stainless 316 |
Stainless 316L |
Polyether | PE | Glass |
| D | L | F | G | P | P316 | P316L | M | E | H |
Valve Seat
| Gather rubber |
NBR | Chloroprene rubber |
PTFE | EPDM | Stainless 304 |
Stainless 316 |
Stainless 316L |
Polyether | PE |
| J | D | L | F | S | P | P316 | P316L | M | E |
Motor
| General Motor | Explosion-Proof Variable frequency Motor |
Variable-Frequency Motor |
Explosion-Proof Motor |
Electro-Magnetic Speed-Adjustable Motor |
| – | PB | P | B | C |
