Big Gear Pump
Big Gear PumpBig Gear Pump Made In China Haina Pumps

Big Gear Pump

Categories: .

Big flow big gear pump manufacturer is haina pump,Flow rate is less than 570 Cubic meters per hour,Discharge pressure is less than 0.6MPA,Caliber biggest is 14 inches.
The model significance:
KCB3800 big gear pump: 3800 is 3800L/min
applicable temperature:<280℃
applicable viscosity:<1500cst

Big gear pump use:

1.It can be give performance as transfer pump or booster pump in oil delivery system.
2.It can be used as fuel pump for delivery system, pressurization and injection in fuel supply system
3.It can be applied as lubricating pump in all industry fields.
4.It can be used in food industry.

KCB big gear pump data table:

Model Capacity Q Speed
r/min
Exhaust
Pressure
Mpa
(NPSH)r
m
Efficiency
η %
Motor
m3/h L/min Power
kw
Model
KCB-18.3 1.1 18.3 1400 1.45 5 44 1.5 Y90L-4
2CY-1.1/1.45
KCB-33.3 2 33.3 1420 1.45 5 44 2.2 Y100L1-4
2CY-2/1.45
KCB-55 3.3 55 1400 0.33 7 41 1.5 Y90L-4
2CY-3.3/0.33
KCB-83.3 5 83.3 1420 0.33 7 43 2.2 Y100L1-4
2CY-5/0.33
KCB-135 8 135 940 0.33 5 46 2.2 Y112M-6
2CY-8/0.33
KCB-200 12 200 1440 0.33 5 46 4 Y112M-4
2CY-12/0.33
KCB-300 18 300 960 0.36 5 42 5.5 Y132M2-6
2CY-18/0.36
KCB-483.3 29 483.3 1440 0.36 5.5 42 11 Y160M-4
2CY-29/0.36
KCB-633 38 633 970 0.28 6 43 11 Y160L-6
2CY-38/0.28
KCB-960 58 960 1470 0.28 6.5 43 18.5 Y180M-4
2CY-58/0.28
KCB-1200 72 1200 740 0.6 7 43 37 Y280S-8
KCB-1600 95 1600 980 45 Y280S-6
KCB-1800 112 1800 740 0.6 7.5 43 55 Y315S-8
KCB-2500 150 2500 985 75 Y315S-6
KCB-2850 170 2850 740 0.6 8 44 90 Y315L1-8
KCB-3800 230 3800 989 110 Y315L1-6
KCB-4100 245 4100 743 0.6 8 44 132 Y355M1-8
KCB-5400 325 5400 989 160 Y355M1-6
KCB-5600 330 5600 744 0.6 8 44 160 Y355M2-8
KCB-7600 460 7600 989 200 Y355M3-6
KCB-7000 420 7000 744 0.6 8 44 185 Y355L1-8
KCB-9600 570 9600 989 250 Y355L2-6

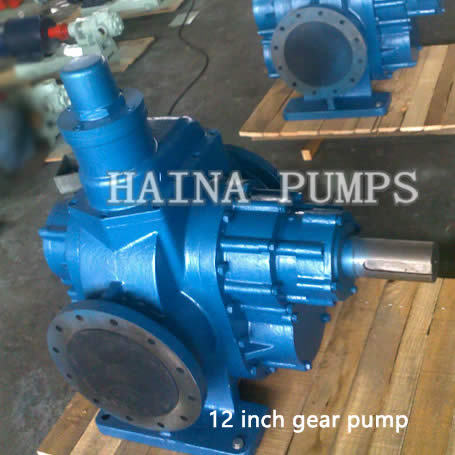

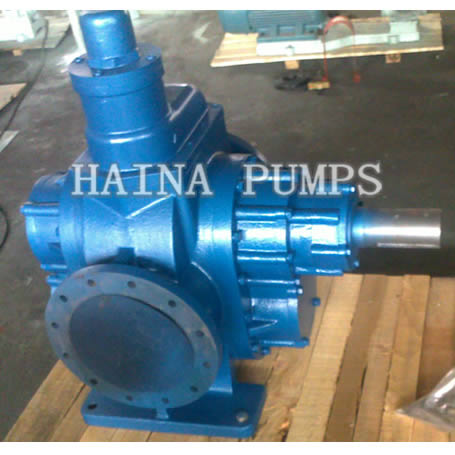

Big gear pump appearance picture:

Big Gear Pump 12 Inch 10 InchBig Gear Pump KCB5400 KCB3800 KCB2500
