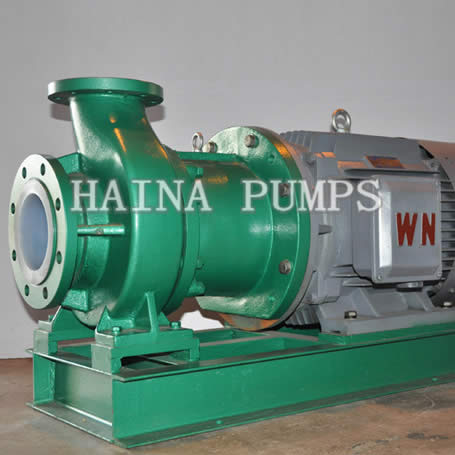

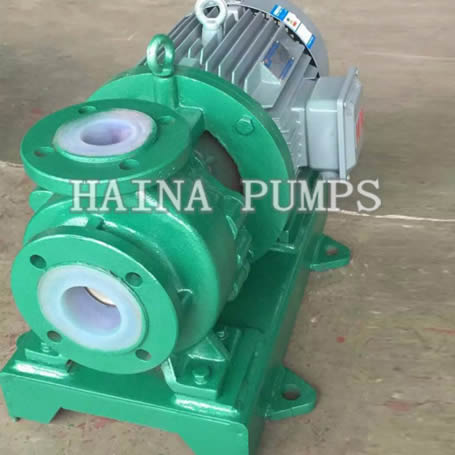

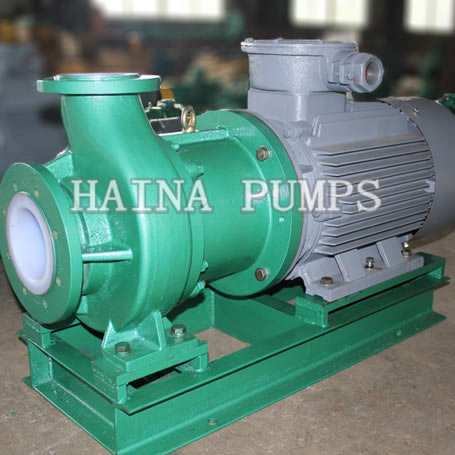

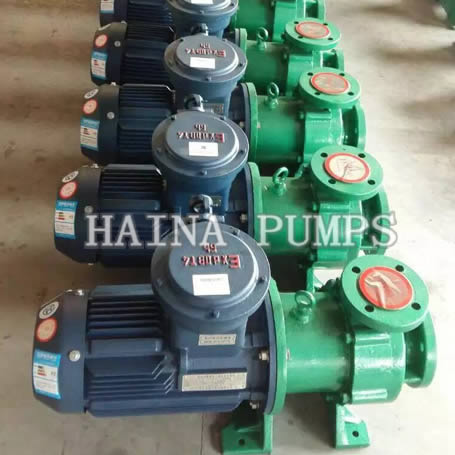

China haina magnetic drive pump is the application of the working principle of magnetic couplings in centrifugal pump of new products, the main materials are stainless steel, reinforced polypropylene, engineering plastics.Reasonable design, advanced technology, has the full seal, no leakage, corrosion resistance, the characteristics of its performance reach the advanced level of similar foreign products.Conventional magnetic drive pump classification: stainless steel magnetic pump, plastic magnetic drive pump, high temperature magnetic drive pump, self-priming magnetic drive pump.It is widely used in chemical, pharmacy, plate oil, environment protect, rare dust separate, smelt and car manufacture area. It is better for transporting acids, bases, oils and other fluids, which are either toxic and volatile or easy to leak, flammable and explosive.
Magnetic drive pump parameter
Flow: 0.4-200m3/h Head: 5-80m
Rotary speed: 1450, 2900r/min
Power: 0.12-90kw
Caliber: 10-100mm
Magnetic drive pump Model explanation
CQB40-25-160F
CQB — Magnetic Pump
40 — Inlet diameter
25 — Outlet diameter
160 — Impeller diameter
F — Flow passage component – fluorine plastic – PTFE – teflon
|
CQB-F pump Type |
Flow(m3/h) | Head(m) | Motor（kw） | Speed(r/min) | NPSH（m） |
| CQB15-15-65F | 0.8 | 3.2 | 0.18 | 2900 | 6.0 |
| CQB20-15-75F | 1.6 | 7 | 0.18 | 2900 | 6.0 |
| CQB25-20-100F | 2.5 | 10.5 | 0.37 | 2900 | 6.0 |
| CQB32-20-110F | 5.5 | 13.5 | 0.55 | 2900 | 6.0 |
| CQB32-20-160F | 3.5 | 32 | 1.5 | 2900 | 5.0 |
| CQB40-25-120F | 6.3 | 15 | 0.75 | 2900 | 5.0 |
| CQB40-25-125F | 6.3 | 20 | 1.1 | 2900 | 5.0 |
| CQB40-25-160F | 6.3 | 32 | 3 | 2900 | 5.0 |
| CQB40-40-125F | 6.5 | 17.5 | 1.1 | 2900 | 3.7 |
| CQB50-32-125F | 12 | 20 | 1..5 | 2900 | 3.5 |
| CQB50-32-160F | 12.5 | 32 | 4 | 2900 | 3.5 |
| CQB50-35-200F | 12.5 | 50 | 7.5 | 2900 | 3.5 |
| CQB65-50-125F | 25 | 20 | 3 | 2900 | 4 |
| CQB65-50-125AHNF | 50 | 20 | 7.5 | 2900 | 4 |
| CQB65-50-150F | 20 | 25 | 3 | 2900 | 4 |
| CQB65-50-160F | 25 | 32 | 4 | 2900 | 4 |
| CQB65-50-180F | 8 | 38 | 5.5 | 2900 | 5.5 |
| CQB65-40-200F | 25 | 50 | 11 | 2900 | 4 |
| CQB80-65-125F | 50 | 20 | 7.5 | 2900 | 3.5 |
| CQB80-65-160F | 50 | 32 | 11 | 2900 | 4 |
| CQB80-65-160F | 80 | 32 | 11 | 2900 | 3.5 |
| CQB80-50-200F | 50 | 50 | 15 | 2900 | 4 |
| CQB100-80-160F | 100 | 32 | 18.5 | 2900 | 5 |
| CQB100-65-200F | 100 | 50 | 30 | 2900 | 4 |

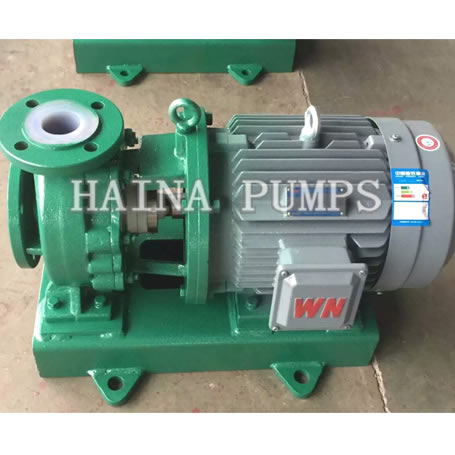

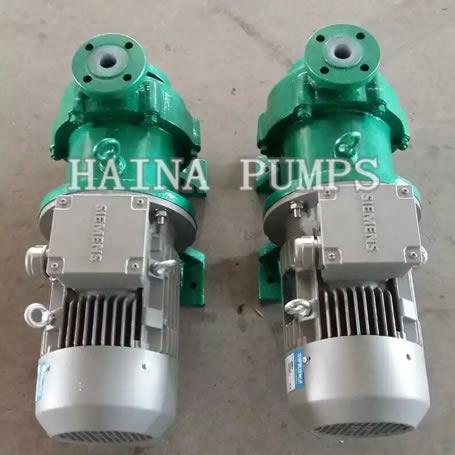

Magnetic drive pump type is CQB-F pump,manufacturer is china haina pumps,CQB magnetic pump advantage is no leaking, corrosion resistance.
