| SPECIFICATIONS FOR CHINA HAINA THREE SCREW PUMP SN SNF SNH SERIES | |||

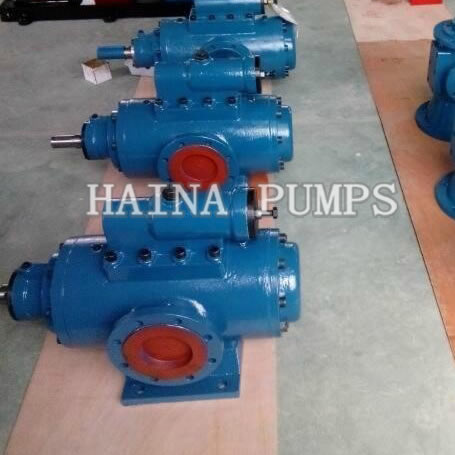

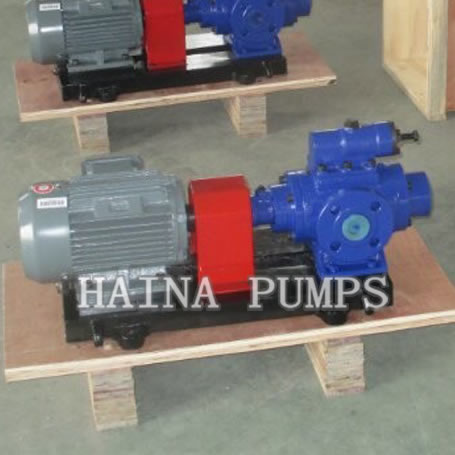

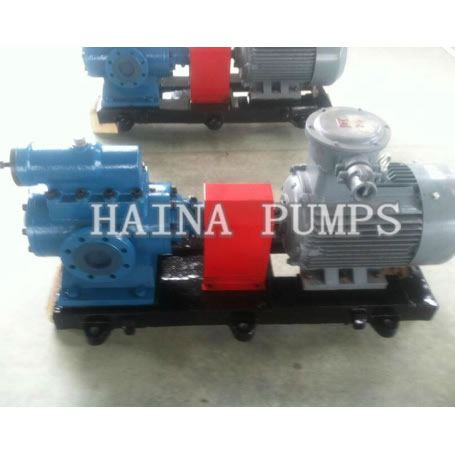

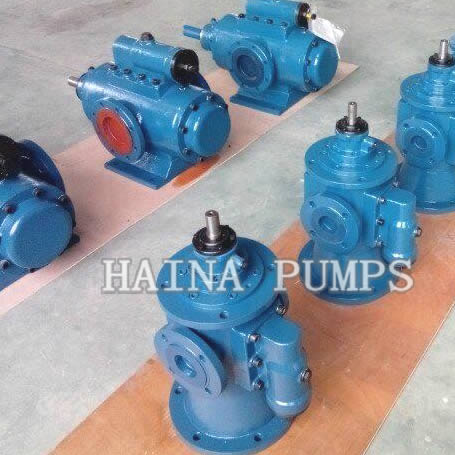

| SN screw pump
SNF screw pump SNH screw pump SNS screw pump |
Capacity | L/min | Max: 5320 |
| Pressure/Head | bar | Max: 60 | |
| Viscosity | l/min(mm2/s) | 0.5-100,00 | |
| Speed | r/min | 750-2900 | |
| Temperature | ℃ | -20-250 | |
| Mounting | Vertical/Horizontal | ||
| Seal | Mechanical seal | ||
Screw pump advantage:
1 Rotor hydraulic balance, small vibration, low noise.
2 Output stability, no pulsation.
3 High efficiency
4 Has a strong self absorption ability
5 Parts using a series of universal design, with a variety of installation.
6 Compact structure, small size, light weight, can work at a higher speed
