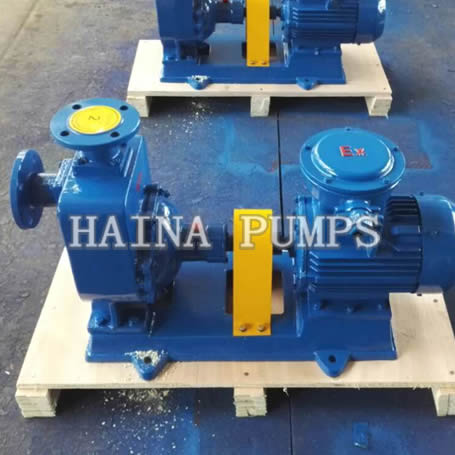

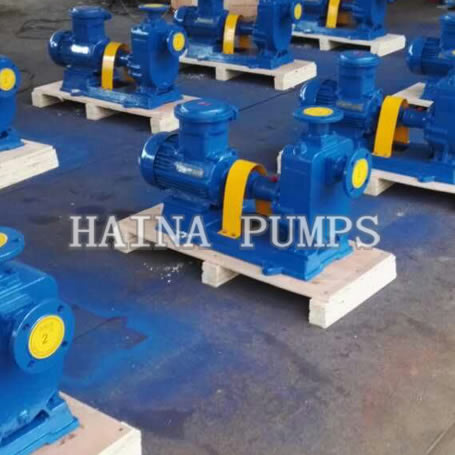

Diesel Oil Transfer Pump
Diesel Oil Transfer PumpDiesel Oil PumpCentrifugal Pump For Diesel Oil

Diesel Oil Transfer Pump

Categories: .

We manufacture low pressure, medium pressure and high pressure diesel oil transfer pump.
Diesel oil transfer pump belongs to centrifugal pump;Has a simple structure, convenient operation and maintenance, stable operation, large displacement, high efficiency, easy to adjust, strong self-priming capacity, widely applicable, etc.

Diesel oil transfer pump applications:
Used to transport gasoline, diesel, kerosene;Medium temperature in – 20 ℃ ~ + 80 ℃, Flow range 0.6-800 cubic meters per hour,it is a good ship loading and unloading of oil pump, can double as stripping pump.And is suitable for the land oil transportation, oil depot, such as fuel oil storage device can also be used for transporting seawater, fresh water, etc.CYB-S type diesel oil transfer pump safe and reliable, long service life.

CYB-S type Diesel oil transfer pump performance parameters table:

No. Model Capacity head
m
Pump
NPSH
m
Self-priming
min/5m
Speed
r/min
Shaft
power
kw
Diameter
mm
  diesel oil transfer pump Motor
m 3 /h L/min   Model Power
kw
1 CYB-S-25-27 3 50 27 3 3 2900 0.6 25 YB801-2 0.75
2 CYB-S-40-20 6.3 105 20 3.5 2 2900 0.88 40× 32 YB802-2 1.1
3 CYB-S-40-40 10 167 40 3.5 1.5 2900 2.8 50× 40 YB112M-2 4
4 CYB-S-50-12 15 250 12 3.5 2.5 2900 1.1 50 YB90S-2 1.5
5 CYB-S-50-20 18 300 20 3.5 2 2900 1.8 50 YB90L-2 2.2
6 CYB-S-50-35 14 233 35 3.5 1.5 2900 2.7 50 YB112M-2 4
7 CYB-S-50-50 12.5 208 50 3.5 1.5 2900 4.3 50 YB132S1-2 5.5
8 CYB-S-50-60 15 250 60 3.5 1.5 2900 6.3 50 YB132S2-2 7.5
9 CYB-S-50-75 20 333 75 3.5 1.5 2900 9.9 50 YB160M1-2 11
10 CYB-S-65-15 30 500 15 4 2 2900 1.92 65 YB100L-2 3
11 CYB-S-65-30 25 416 30 4 2 2900 3.2 65 YB112M-2 4
12 CYB-S-80-13 35 583 13 4 3.5 2900 1.9 80 YB100L-2 3
13 CYB-S-80-17 43 716 17 4 2 2900 3.1 80 YB112M-2 4
14 CYB-S-80-25 50 833 25 4 1.5 2900 5.2 80 YB132S2-2 7.5
15 CYB-S-80-32 50 833 32 4 1.5 2900 6.8 80 YB132S2-2 7.5
16 CYB-S-80-55 60 1000 55 4 1.5 2900 15.0 80 YB160L-2 18.5
17 CYB-S-80-70 60 1000 70 4 1.2 2900 20.1 80 YB180M-2 22
18 CYB-S-100-40 100 1667 40 4 2 2900 18.3 100 YB180M-2 22
20 CYB-S-100-65 100 1667 65 4 2 2900 27.7 100 YB200L1-2 30
21 CYB-S-100-75 70 1167 75 4 2 2900 24.2 100 YB200L1-2 30
22 CYB-S-150-55 160 2667 55 5 2 2900 38.1 150 YB225M-2 45
23 CYB-S-150-65 170 2833 65 5 1.3 1470 51.0 150 YB250M-4 55
24 CYB-S-200-63 280 4667 63 5 1.5 1480 75.1 200 YB280M-4 90
25 CYB-S-250-50 400 6666 50 6 1.5 1480 77.2 250 YB280M-4 90
26 CYB-S-300-50 500 8333 50 5 2 1450 77.2 300 YB280M-4 90
27 CYB-S-300-32 600 9999 32 5 2 1450 77.2 300 YB280M-4 90
28 CYB-S-300-20 800 13333 20 5 2 1450 77.2

Thank you for choosing haina pump industry of diesel oil transfer pump products.
