Multistage Centrifugal Pump

Product name: Multistage Centrifugal Pump
Medium:Water, oil
Material:cast iron, cast steel, stainless steel.

Categories: .

Thank You for browse Haina Pumps Vertical and Horizontal Multi-stage Centrifugal Pump.

Energy-efficient、Safe and stable operation、low noise、Long-life、Easy to install and maintain;Easy to install and maintain、Sealing form and additional cooling system,It can transfer hot water, oil, corrosive media.

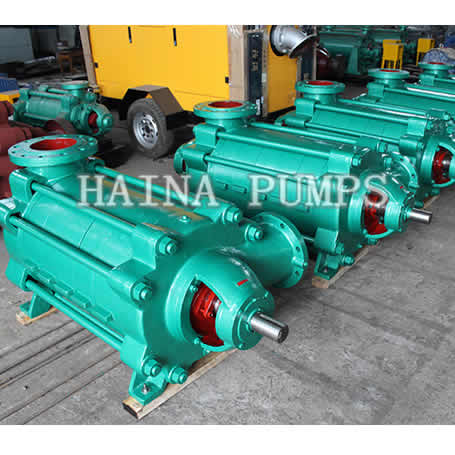

D DF DY Series pumps are in multistage single casing sectional horizontal construction designed in accordance with API610, for high-head pumping various kinds of liquids without solids, applicable to a wide range of tough and heavy circumstances.

Type D: ideal for low & medium pressure applications of clean water or similar liquids in mining and municipal water supply and drainage. Liquid Temperature up to 80℃.
Type DF: designed for pumping corrosive liquids with suction pressure up to 0.6 MPa and temperature up to 1O5℃. Materials of construction, type of seals and the internal construction may vary according to specific liquid to be pumped.
Type DY: Ideal for oils and petrochemical products with temperature up to l50℃ and viscosity up to 120cst.

• Sectional single casing construction, the suction casing, stage casing and discharge casing shall be tied together with tie-bolts and sealed with metal-to-metal surface sealing.
• Soft packing as standard shaft sealing, external water cooling system designed for cooling of gland cover and stuffing box. Mechanical seal also available upon request.
• The rotor will be supported at both ends by slide or ball bearings that will be lubricated with either oil or grease and cooled by circulation water. The axial thrust of the rotor is balanced by balancing discs. Return water piping shall be designed between the balancing chamber and suction casing.

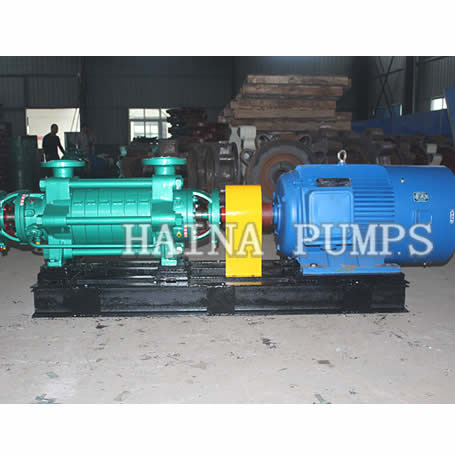

• Pump shall be flexibly coupled with driving motor, clockwise rotation looking from motor side.  <More>
