Horizontal Multistage Centrifugal Pump

Horizontal multistage centrifugal pump with high efficiency, wide range of performance, smooth running safety, low noise, long service life, easy installation and maintenance, etc.For conveying water or physical and chemical properties similar to water other liquid.Mainly suitable for urban high-rise building water supply and drainage and fire water, factories, mines, water supply and drainage, long-distance water conveyance, water in the production process, hvac circulation, water and other purposes.

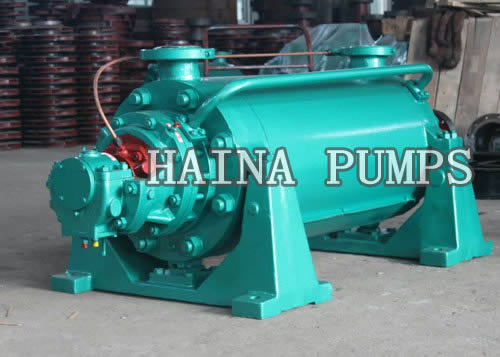

DG Model Horizontal Multistage Centrifugal Pump

Technical parameters of horizontal multi-stage centrifugal pump
Flow range:3.75~1100M3/H
Head:Less than 2500M
Pump material:Cast iron, cast steel, stainless steel
Seal: packing seal, mechanical seal
Manufacturer:CHINA HAINA PUMPS
Speed:1450-2950r/min;

D, DM, DF, DY, DG type pump is horizontal, single-suction multi-stage sectional centrifugal pump.With high efficiency, wide range of performance, smooth running safety, low noise, long life, easy installation and maintenance, etc.For conveying water or physical and chemical properties similar to water other liquid.Can also by changing the pump flow components, sealing material form and increase the cooling system used in conveying hot water, oil, corrosive or abrasive media.Execute JB/T1051-93 “multi-stage centrifugal water pump type and basic parameters” standards.
D: suitable for conveying water or physical and chemical properties of containing no solid particles similar liquid, the temperature of the medium to be delivered to 0 ~ + 80 ℃, the pump inlet is horizontal, vertical spit exports.
DM: suitable for conveying containing a small amount of solid particles, the chemical and physical properties of similar liquid, the temperature of the medium to be delivered to 0 ~ + 80 ℃, the pump inlet is horizontal, vertical spit exports.
DG:  the temperature of the medium to be delivered to – 20 ℃ ~ 150 ℃, the pump suction and discharge nozzles are vertical.
DY: suitable for conveying oil product containing no solid particles or other liquids similar to water, the temperature of the medium to be delivered to -20℃~ + 400℃, the pump suction and discharge nozzles are vertical.
DF: applicable to transport corrosive liquid not containing solid particles, temperature for medium to be delivered -20℃~ + 150℃, the pump suction and discharge nozzles are vertical.
