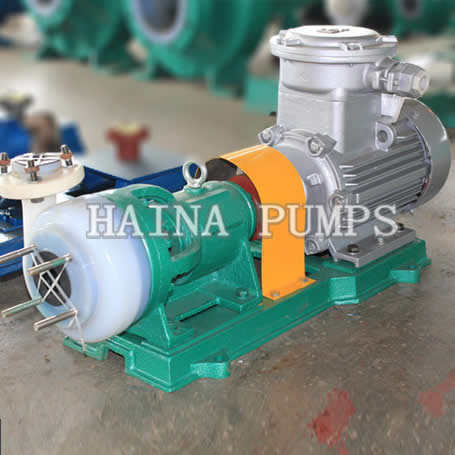

Teflon-PTFE Centrifugal Pump
Teflon-PTFE Centrifugal PumpPtfe Centrifugal PumpTeflon Centrifugal Pump Manufacturer In ChinaTeflon Centrifugal PumpPtfe Centrifugal Pump China

Teflon-PTFE Centrifugal Pump

Categories: .

1.China Haina FSB strong acid alkali centrifugal pump anti resistant PTFE TEFLON centrifugal pump is reasonable design, compact structure, reliable performance, easy to use and saving energy.
2. Applied to convey strong acid, strong alkali, oxidant, corrosive medium (forbid to transit medium likely to crystallize) with physical property similar to water.
3. Wet parts are made of fluorine plastic alloy through reasonable design, mold pressing, machining, with advantages of strong corrosion resistance ability, high mechanical strength, non aging, no toxin decomposed.
4. It is widely used in the fields of chemical industry, petrol, medicine, pesticide, dye, smelting, paper making, plating, and food, etc.

Teflon centrifugal pump details

Working Principle: Centrifugal, full plastic pump head
Main applications: Chemical
Driver: Electric motor
Power Specs: 220V, 240V, 380V, 400V, 415V, 440V, 50/60Hz
Max.permissible fluid temperature: 100°C(212°F)
Type of connection: Flange
Installation position: Horizontal
Casing parts material: PTFE, Teflon, UHMWPE, F46, F26
Shaft seal type: Mechanical seal
Maximum drive rating: 75KW(100HP)
Maximum caliber: 200mm(8inch)
Maximum discharge-side pressure: 0.8MPa(8bar)
Maximum head: 80m(262.4ft)
Flow rate range: 1.5-400m3/h(6.6-1760US.GPM)

PTFE Centrifugal pump parameters

Model Capacity
(m3/h)
Head

(m)

Inlet

(mm)

Outlet

(mm)

Power

(KW)

Speed

(r/min)

Efficiency

(%)

25FSB-10L 1.5 10 25 20 2.2 2900 29
25FSB-18L 3.6 18 25 20 2.2 2900 27
40FSB-15L 10 15 40 32 3 2900 40
40FSB-20L 10 20 40 32 3 2900 42
40FSB-30L 10 30 40 32 3 2900 38
40FSB-40L 10 40 40 32 4 2900 35
40FSB-50L 10 50 40 32 5.5 2900 33
50FSB-20L 15 20 50 40 4 2900 51
50FSB-25L 15 25 50 40 4 2900 49
50FSB-30L 15 30 50 40 4 2900 44.5
50FSB-40L 15 40 50 32 5.5 2900 35
50FSB-50L 15 50 50 32 7.5 2900 33
65FSB-32L 29 32 65 50 5.5 2900 57
65FSB-40L 29 40 65 40 7.5 2900 53
65FSB-50L 29 50 65 40 11 2900 46
80FSB-20L 50 20 80 65 7.5 2900 69
80FSB-30L 50 30 80 65 7.5 2900 64
80FSB-34L 50 34 80 65 11 2900 64
80FSB-38L 50 38 80 50 11 2900 60
80FSB-50L 50 50 80 50 15 2900 53
80FSB-80L 50 80 80 50 22 2900 36
100FSB-32L 100 32 100 80 18.5 2900 70
100FSB-40L 100 40 100 80 22 2900 70
100FSB-50L 100 50 100 65 30 2900 62
125FSB-32L 200 32 125 80 30 2900 72
125FSB-50L 200 50 125 100 45 2900 64
150FSB-32L 200 32 150 100 30 1450 77
150FSB-50L 200 50 150 100 55 1450 75
200FSB-32L 400 32 200 150 55 1450 81
200FSB-50L 400 50 200 150 75 1450 79

You are welcome to buy our company of PTFE centrifugal pump and teflon centrifugal pump products,Pump Manufacturer is china haina pumps.
